SmartBag Counter
GÖZCÜ
Counts by camera, verifies by AI, proves by video
Counts bags passing on the conveyor by camera; records every loading on video with licence plate and customer information.
- ≥99.8 %
- Over 99.8% counting accuracy
- Measured in field data
- Every loading on video
- With licence plate, customer and timestamp
- Live panel and Excel report
- Summary by shift and vehicle
- Fast integration with the existing line
- OPC UA · Modbus TCP · REST API
- Commissioning in an average of 3–5 days

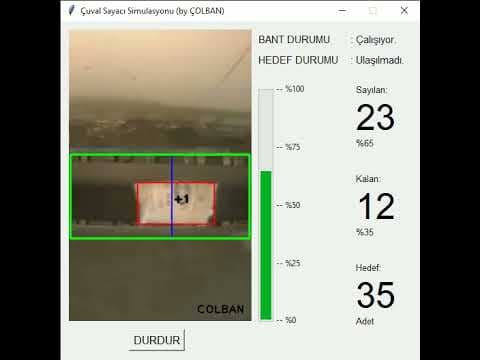

GÖZCÜ replaces manual counting on the dispatch line. It processes the image from the industrial camera on an edge AI device, counts each bag individually and displays the result on a live panel. Every loading session is recorded on video with the licence plate, customer and timestamp; when a dispute arises the recording can be reviewed. Shift-based and vehicle-based Excel reports are used directly in accounting and logistics. The system does not weigh bags or measure weight — it only counts.
How it works
Three steps from conveyor to report.
- 01
Imaging
An industrial camera overlooking the conveyor continuously captures every passing bag.
- 02
Counting
The model on the edge AI device marks bags individually and counts them with multi-object tracking; reversed bags are subtracted from the count.
- 03
Recording and reporting
The loading is recorded on video, the count appears on the live panel and is exported to an Excel report.
Technical specifications
System
- Operating principle
- Contactless counting using image processing on the conveyor
- Counting accuracy
- min. 99.8 %
- Recording
- H.264 video archive per loading; licence plate, customer and timestamp
- Reporting
- Live panel and Excel output; summary by shift and vehicle
Technology
- Hardware
- Industrial camera and NVIDIA Jetson Orin edge AI processor
- Algorithm
- Custom-trained YOLO model and multi-object tracking
- Integration
- OPC UA · Modbus TCP · REST API
- Commissioning
- 3–5 days on average; no process stoppage required
- Application area
- Dispatch and loading lines in cement, flour, feed, fertiliser and chemical plants
